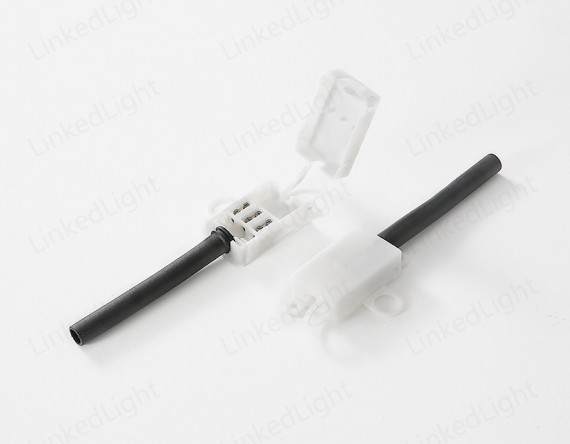

JB.5103 / 3 Pole Connection Box with Tail
3 Pole Connection Box with Tail is mainly used for all kinds of ceiling lamps, pendant lamps and other lighting appliances wire connection.
Approvals : CE / ENEC
Technical Operating Data
Rated Voltage : 250 V | Rated Current : 17.5A |
Rated Temperature : T85℃ | Wiring Poles : 3 |
Cable Capacity : 0.5-1.0mm²
| Strip Length : 7mm
|
Rewirable : Yes
| Box Closing : Press type |
Housing Material : PP
| Insert Material : Steel
|
Circuit : Multiway | Product Size : L42+80xW27xH12mm
|
Matched Connector:3 Pole Terminal
| Wiring Way : Screw Fixing
|
