LSZH Low Smoke Zero Halogen Cables
LSZH Low Smoke Zero Halogen Cables

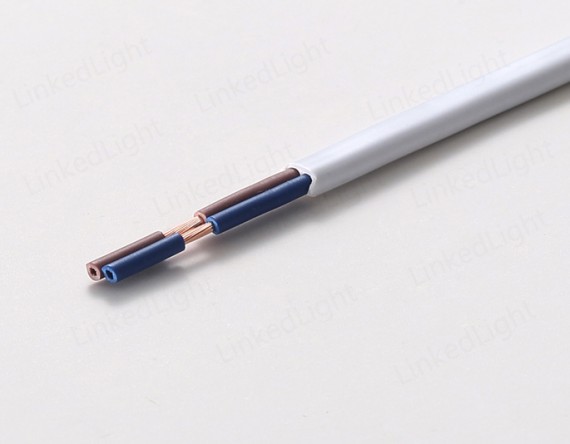

CB.401 / H03Z1Z1H2-F / 2 Core Flat Low Smoke Zero Halogen Cable 0.5-0.75mm²

This cable is 2 core flat Low Smoke Zero Halogen Cable, the type is H03Z1Z1H2-F, It is mainly suitable for household appliances, lighting lamps, office equipments, medical equipments and other power connection.

Optional Colour :

Black

White



Approvals :

VDE

Technical Operating Data
Cable Type : H03Z1Z1H2-FConductor Material : Stranded Bare Copper
Insulation Material : Low Smoke Zero Halogen
Jacket Material : Low Smoke Zero Halogen
Rated Voltage : 300/300V
Rated Temperature : 70 ℃


Conductor Section : 2x0.5mm²Construction : 28x0.15Φmm
Conductor Section : 2x0.75mm²
Construction : 24x0.20Φmm
Insulation Thickness : 0.5mm
Jacket Thickness : 0.6mm
