PVC Jacket Flexible Cables
PVC Jacket Flexible Cables
18 0
Products

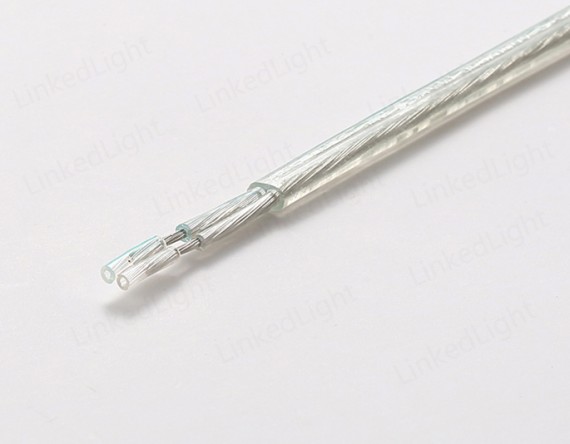

CB.116 / NISPT2 / PVC 2 Core Flat Cable for North America 18-16AWG
This cable is 2 core flat jacket cable for North America, the type is NISPT2, It is mainly suitable for household appliances, lighting lamps, office equipments, medical equipments and other power connection.
Optional Colour :

Black

White

Transparent

Customized

Approvals : CUL
Technical Operating Data
Cable Type : NISPT2Conductor Material : Stranded Bare Copper
Insulation Material : PVC
Jacket Material : PVC
Rated Voltage : 300/300V
Rated Temperature : 70 ℃ / 90℃ / 105℃


Conductor Section/18AWG : 2x0.82mm²Construction : 41x0.16Φmm
Conductor Section/16AWG : 2x1.31mm²
Construction : 26x0.254Φmm
Insulation Thickness : 0.76mm
Jacket Thickness : 0.38mm
